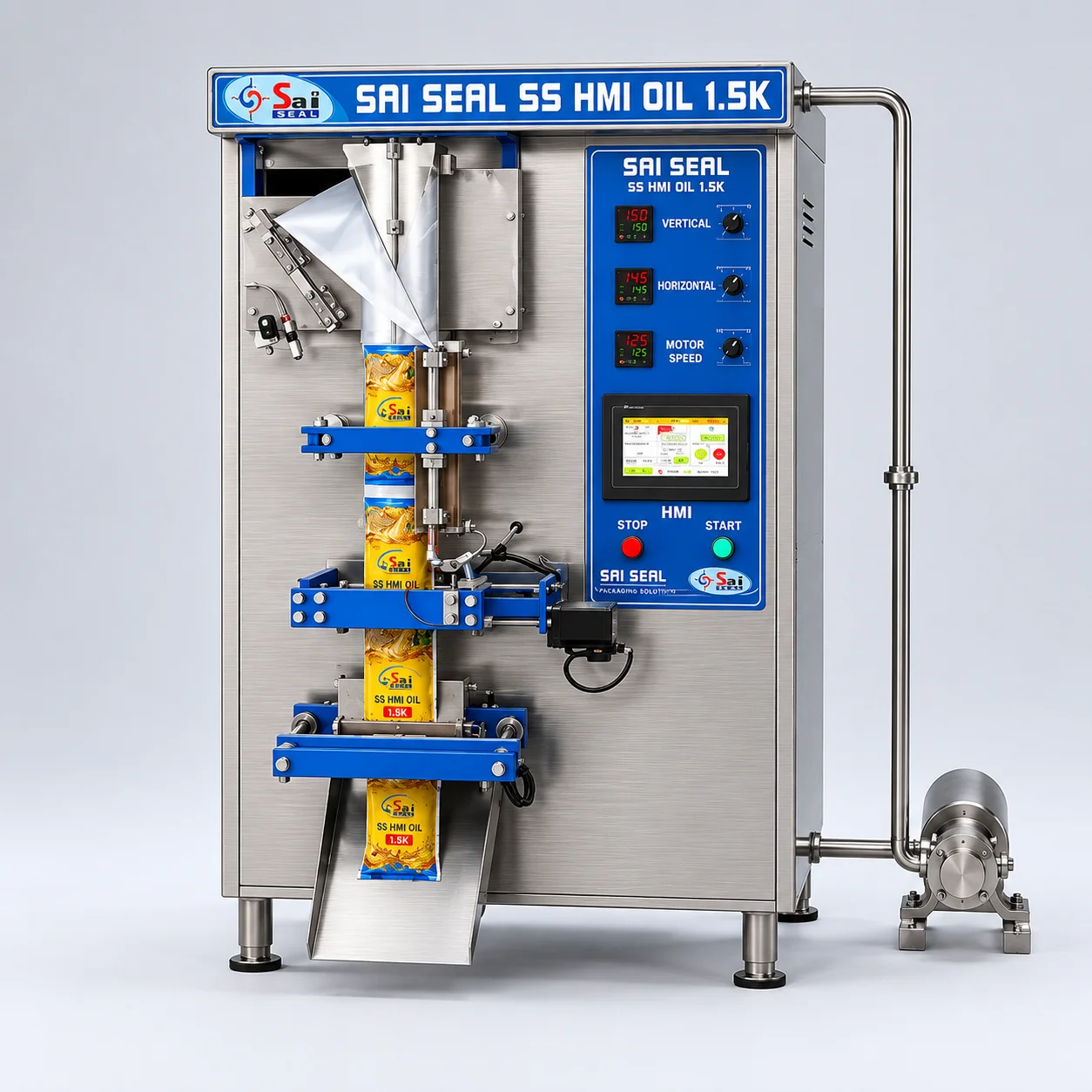

An oil pouch packing machine is a specialised FFS system engineered to handle viscous edible oils — mustard, sunflower, coconut, groundnut, palm — and seal them in sachets and pouches without leakage.
Engineered specifically for viscous edible oil sachet production from 50ml to 1L.
| Model | Output | Power | Best For |
|---|---|---|---|
| SS HMI Oil 1.5K — Variant 1 | 35–45 pouches/min (~2,100–2,700 pph) | 1Ø 230V, 3 kW | Small format: 50 ml to 200 ml pouches (high production rate) |
| SS HMI Oil 1.5K — Variant 2 | 15–20 pouches/min (~900–1,200 pph) for 1L | 1Ø 230V, 3 kW | Large format: 300 ml to 1 Litre pouches (15–20 ppm for 1L) |
Output speed varies with oil viscosity. Higher viscosity oils may reduce throughput.
Three things make oil different from water/milk packing: viscosity, contamination, and film traction.
Oil fills slower than water. The filling assembly must hold pressure and meter accurately at high viscosity. Standard milk machines often over-fill or under-fill oil.
Trace oil migrating to the seal area weakens heat seals. Our machine has an oil-isolation guard at the seal zone plus PID temperature compensation to maintain seal integrity.
Oily film slips through pulling rollers. We use textured pull rollers with increased grip pressure tuned specifically for oily film operation.
Example: Running at 18 ppm for an 8-hour shift = (18 × 60 × 8) × 0.85 = ~7,300 pouches per shift.
The SS HMI Oil 1.5K handles viscosity, contamination, and traction automatically.
Continuous heat seal with PID auto-tune prevents the need for external chillers.
Purely mechanical operation reduces electricity costs and noise levels.
Designed for unattended shift operation with heavy-duty mechanical parts.
Fewer pneumatic failure points compared to standard machines.
Recipe storage per oil type for quick changeovers between mustard, coconut, etc.
PID controller ensures precise temperature for zero-leak sealing.
Fits in a compact 1m × 1m floor footprint, ideal for small oil mills.
Standard 230V connection — no heavy industrial wiring needed.
From small mills to cosmetic lines, we handle every type of oil packaging.
Sai Seal offers two distinct oil packing machine variants customized for your specific pouch dimensions and filling volumes to ensure optimal packaging speeds.
Designed specifically for high-speed packing of small edible oil sachets and cosmetic oils.
| Pouch Size Range | 50 ml to 200 ml |
| Production Speed | 35 to 45 ppm |
| Filling System | High-precision Syringe Pump |
| Best For | Mini sachets, hair oils, ghee packs |
* Offers a considerably higher production rate due to the smaller filling volume.
Engineered for standard consumer formats, offering maximum volume accuracy and reliable seals for large capacity packages.
| Pouch Size Range | 300 ml to 1 Litre (or 200 ml) |
| Production Speed | 15 to 20 ppm (for 1L size) |
| Filling System | Piston Filler / Gear Pump |
| Best For | Edible oil consumer pouches (1L, 500ml) |
* Output speed varies with oil viscosity. Thicker oils (coconut at low temperatures, ghee) reduce output by 15–25%.
Sai Seal supplies the machinery; you’re responsible for:
Technically yes, practically no. Retrofitting causes leakage problems, inaccurate fills, and faster seal pad wear. Buying a dedicated oil pouch machine pays back within months in reduced rejections.
Send your oil type, pouch size, and target daily output to +91-9890930394 for a same-day quote.
Yes, with the heated jacketed hopper add-on. Ghee at room temperature is too thick to flow through standard piston fillers — heating to 45–55°C keeps it liquid enough for accurate filling.
Properly run, no. Seal integrity depends on three things: temperature (PID handles it), seal time (PLC controls it), and clean seal area (operator practice). Our training covers all three.
No, we don’t sell film. We can refer Pune-based food-grade laminate suppliers known for compatibility with our seal jaws.
Standard 1–2 day installation including first oil trial. Operator training covers seal optimisation per oil type, daily cleaning, and basic fault diagnosis.
Send your oil type, pouch size, and target daily output to +91-9890930394 for a same-day quote. Factory: Lohegaon, Pune 411047
